Wooden Grooved Acoustic Panel for Stadium and School Acoustic Project

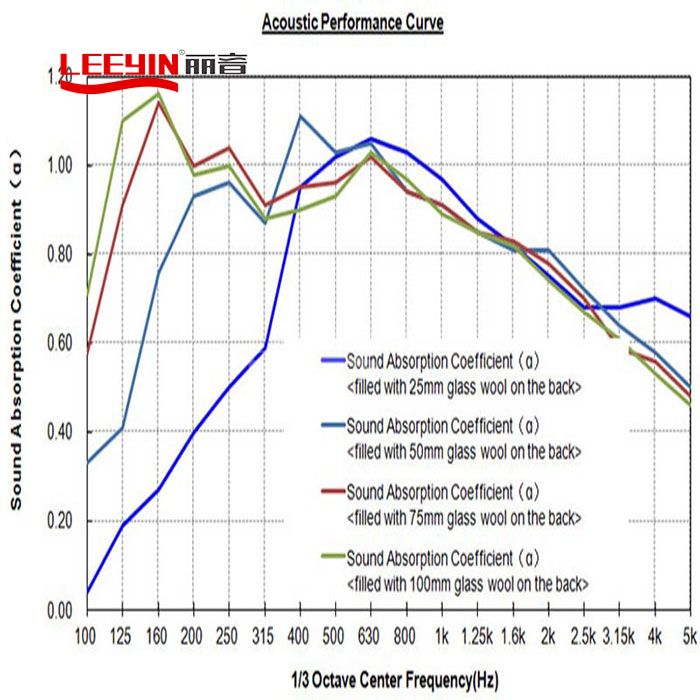

Leeyin® grooved wood acoustic panel has high acoustic absorption coefficient, the average NRC can reach 0.80. It's widely applied in many place such as auditorium, gymnasiums, hotels, schools and studios, etc.

Inquire Now Next

Product parameters

The grooved wooden acoustic panels are the perfect combination of modern architectural design and acoustic performance. After long-term engineering projects, the trough wood sound absorbing panels have excellent sound absorption performance, flame retardant performance (A2 grade) and environmental performance (E1). The standard specifications do not need to be customized, and the site can be cut, and the simple construction can effectively shorten the construction period.

	1.Structure	Base Material, Finish & Back Finish
	2.Basic Material	E1 MDF,FR MDF ,MgO Combination Board etc.
	3.Front Finish	Melamine, Natural Wood Veneer, Paint, etc.
	4.Back Finish	Black Acoustic Felt
	5.Standard Size	2440133mm, 2440197mm
	6.Standard Thickness	12/15/18mm
	7.Pattern	13-3, 14-2, 28-4, 59-5,6-2,5-3,4-3;
	8.Acoustic Principle	Resonance Absorption
	9.Eco-Friendly	E1
	10.Fire Resistance	France F1
	11.Density	720kg/M3
	12.Formaldehyde Emission	Can meet both China&EU Standard Class E1
	13.Flame Retardant	Can meet China Standard Class B,BS476 Part 7 Class 1,etc.

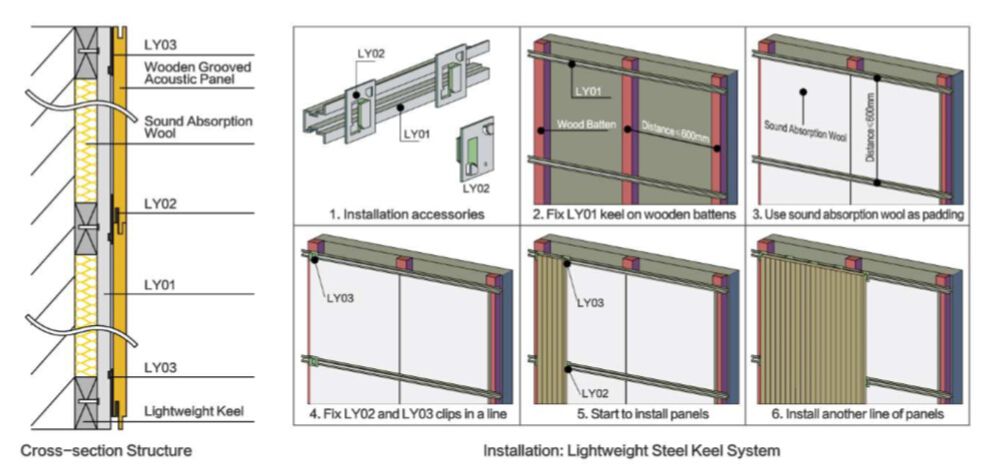

	14.Installation	1.Lightweight steel keel system2.Wooden battern systern

MDF Acoustic Panel Acoustic Wall Panel Grooved Acoustic Panel

Product Features

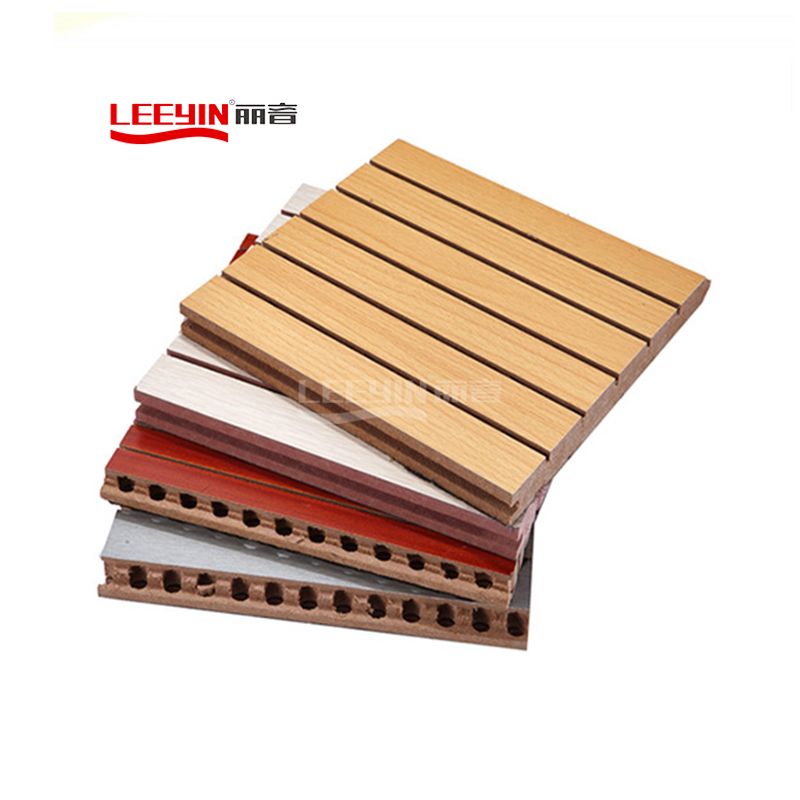

Grooved Acoustic Panel for Stadium and School Acoustic Projrct

1.Scientific industry: Made according to acoustic theory, excellent at reducing noises, especially effective for absorbing high and middle frequency noises.

2.Artistic products: Natural wood, which may be carved according to your taste.

3.Environment-friendly: All the materials conform to the country's environmental protection standards, little wood alcohol is contained. Its natural wood is fragrant.

4.Fireproof: Fireproof degree B1- the highest for wood. It has already been tested by authoritative organization.

5.Moisture-proof and mildew-proof: It is made of high density moisture-proof and mildew-proof material.

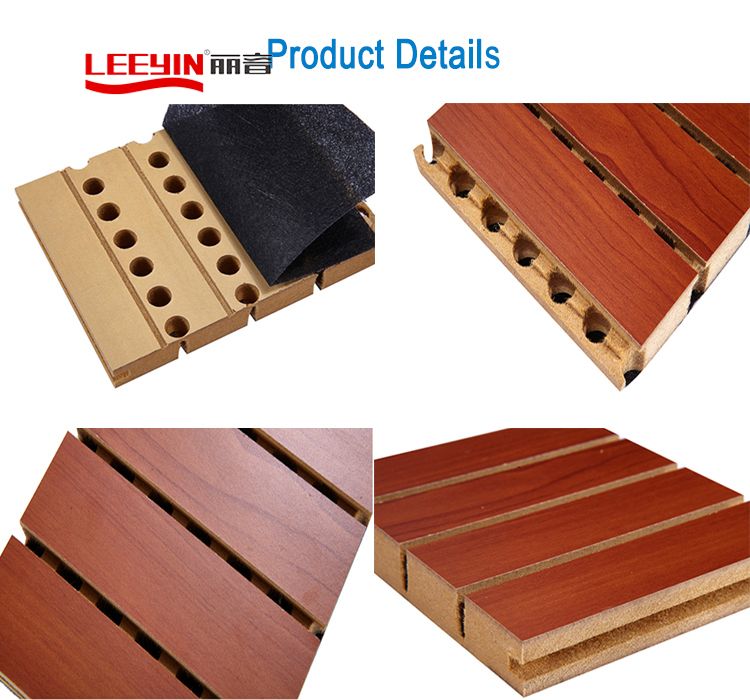

6.Theory: Grooved on front and perforated on back of the panel with concealed system (for installation). It is usually used on the wall to absorb sound and reduce noise.

7.Easy to install: Dragon bone construction is applied.

8.Industrial production: No more an extensive production, automatically controlled by computers, standardized and large scale production, improved is production capability and ensured is products quality.

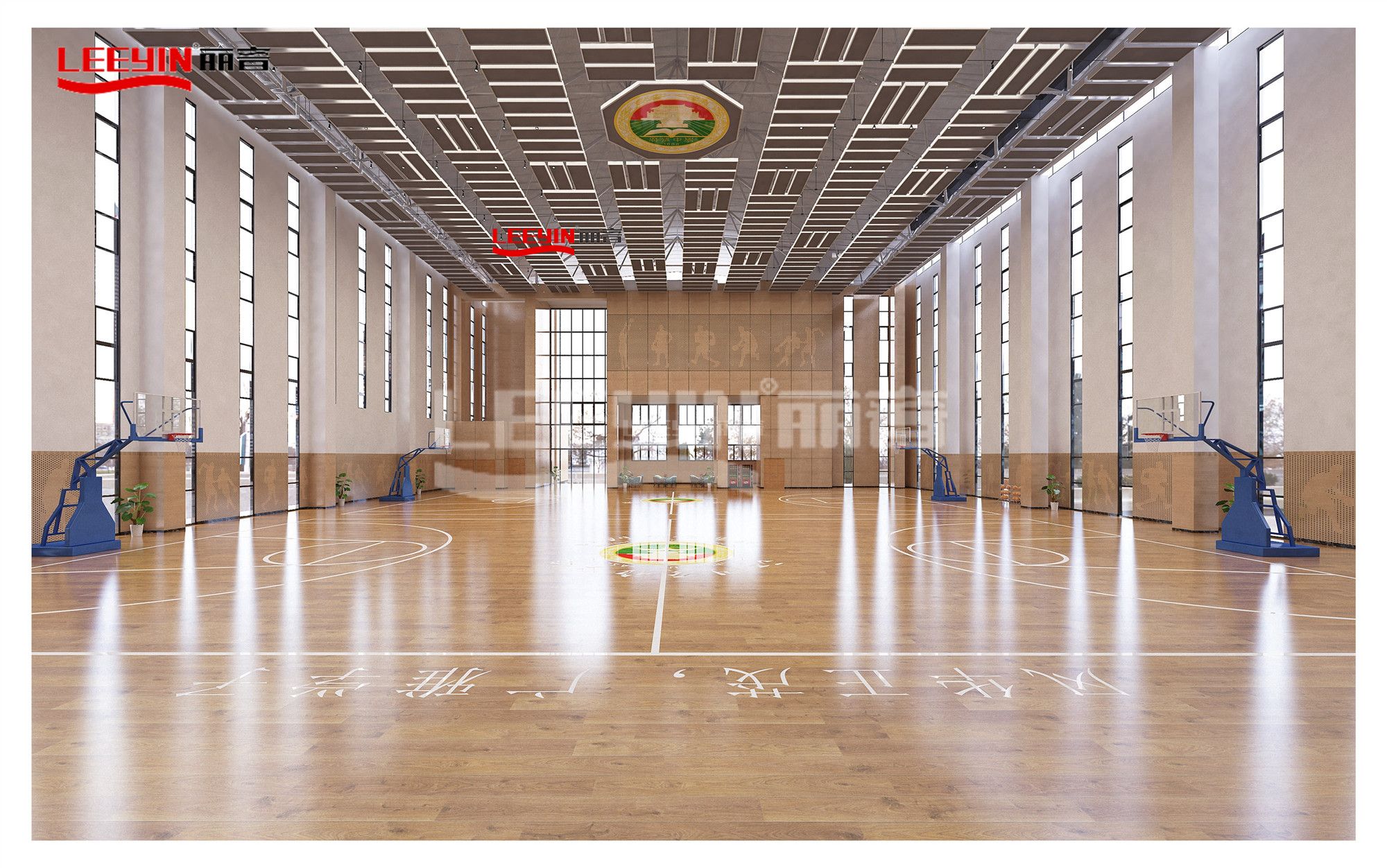

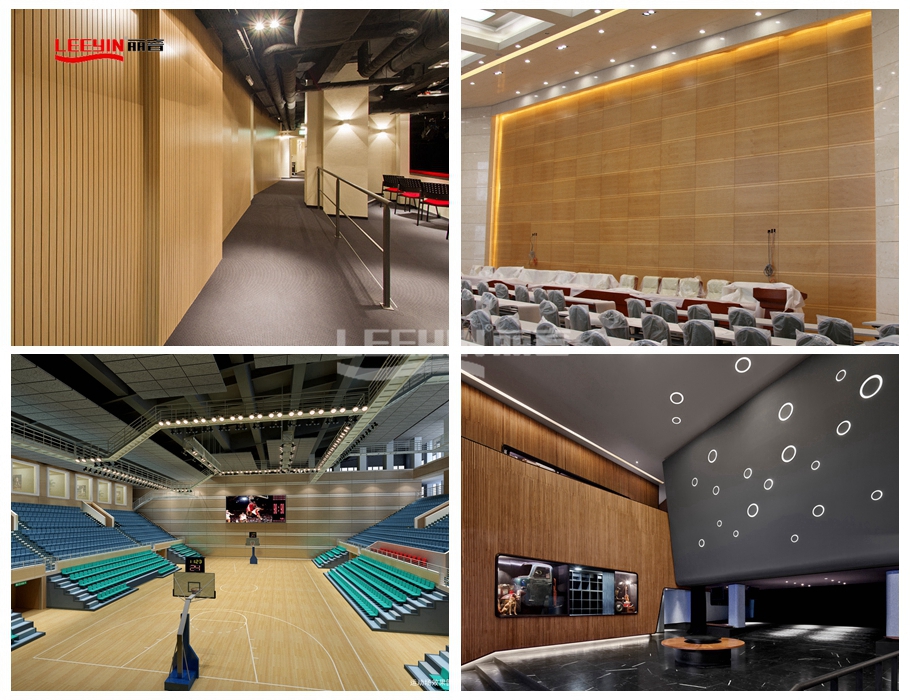

Scope of application

Wooden Grooved Acoustic Panel for Stadium and School Acoustic Project
